Imagine you are sitting on the bank of a river on a quiet afternoon. You see a piece of rock floating in the middle of the stream. The rock blocks the stream and divides it into two parts, and one vortex is formed right behind the stone. These vortexes are not random; rather, they are formed in a specific rhythm, alternating from the right and left sides and moving forward with the stream. This immensely wonderful and artistic phenomenon of nature is the Von Karman Vortex Street.
This phenomenon is not limited to the flow of the river or the stone. The magic of this Von Karman vortex is also present in the sky of clouds. On the wings of aeroplanes, on the pillars of bridges, and even in the science behind the fluttering of the flag in your hand.
In this article, we will explore this fascinating natural and scientific phenomenon called the Von Karman vortex. We will learn about the science behind it, the history of its discovery, its stunning examples in nature, and its groundbreaking applications in modern technology. Let’s begin the mysterious journey of this rotating world.
What is a Von Karman Vortex street?
The Von Karman vortex is a special type that forms behind a fluid or gas when it passes over a stationary, bluff body. These vortices form alternately on both sides of the object and move orderly with the fluid flow. This vortex line looks like a street with light posts on both sides of the Street, hence the name “vortex street.“
Key Features:
- Periodic Shedding: The vortices form alternately on both sides of the object at regular intervals.
- Opposite Rotation: The vortex on one side rotates clockwise while the vortex on the other side rotates counterclockwise.
- Specific Pattern: The vortices form a stable pattern, which makes this phenomenon unique.
To understand this phenomenon, we need to know some basic concepts of fluid dynamics. When a fluid flows past an object, its speed decreases due to friction with the surface of the object. This region is called the boundary layer. If the object is round or blunt, the flow is separated from the edge of the object, and a low-pressure region is formed behind it. This pressure difference causes vortices to form, which are separated from both sides and merge with the flow.
Behind the Discovery: The Contribution of Theodore Von Karman
The remarkable phenomenon is named after the Hungarian-American mathematician, aerospace engineer, and physicist Theodore von Karman. Although many had observed such vortices before, such as the multi-talented Leonardo da Vinci, who sketched them in his notebooks, von Karman established the mathematics and scientific explanation behind them.
In 1911, while working at the University of Göttingen in Germany, he studied the stability of these vortices and mathematically proved that only a certain arrangement of vortices could form a stable row. He showed that this “street” was stable only if the ratio of the vortices (the distance between two rows to the distance between two vortices in the same row) was approximately h/l≈0.281. In honour of his groundbreaking work, this phenomenon is called the “von Karman vortex street”.
Von Karman’s discovery was not only a theoretical breakthrough. It opened up new horizons in many branches of engineering, especially aerodynamics and structural engineering.
Frequently Asked Questions
Let’s find out the answers to some common questions about von Karman vortices that many people have in mind.
Question 1: Why are von Karman vortices formed?
Answer: When a liquid or gaseous substance flows past a stationary and blunt object, a pressure difference occurs behind the object. On the side of the object where the fluid velocity is higher, the pressure decreases according to Bernoulli’s principle. This pressure difference bends the flow of the fluid and creates a vortex. This process occurs alternately on both sides of the object, forming one opposite vortex after another, creating a “street“.
Question 2: Are these vortices always stable?
Answer: No, not always. The stability of the von Karman vortex street depends on the Reynolds Number, Re. The Reynolds number is a dimensionless quantity that expresses the ratio of inertial forces to viscous forces in a fluid.
- Re < 40: The flow is laminar and no vortices are formed.
- 40 < Re < 300: Stable and orderly von Karman vortex street are formed within this range.
- Re > 300: The flow becomes increasingly unstable and turbulent. The vortices lose their orderly arrangement.
Question 3: Can von Karman vortices be dangerous?
Answer: Yes, in some cases it can be very dangerous. Every structure has its own natural frequency. When the vortex shedding frequency matches the natural frequency of a structure, resonance is created. This resonance can cause severe vibrations in the structure, and it can collapse.
The most notorious example is the collapse of the Tacoma Narrows Bridge in 1940. Winds as low as 40 mph created periodic vortices behind the bridge, which matched the bridge’s natural frequency and created a terrible resonance. As a result, the bridge began to sway violently and eventually collapsed. This phenomenon became known as “Galloping Gertie” and has become a major learning experience for engineers.
Question 4: Where can we find examples of von Karman vortices in nature?
Answer: Nature is a treasure trove of such examples.

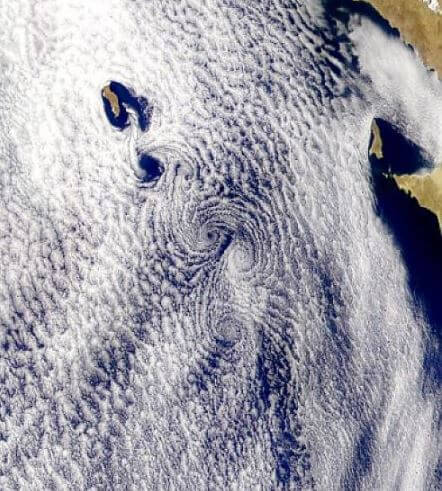

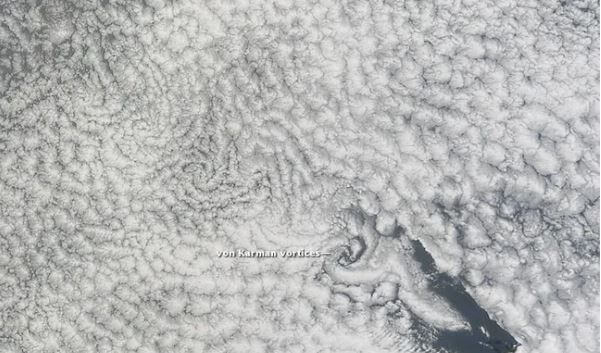

- Cloud formations: Cloud formations are one of the most interesting examples. When wind hits a high island or mountain, it creates hundreds of kilometres of von Karman vortex trails behind it. They appear as spectacular cloud formations in satellite images. Such cloud formations are often seen around the Canary Islands in Spain, Guadalupe Island in Mexico, and Rishiri Island in Japan.
- River currents and marine life: Small Von Karman vortices form behind rocks or around bridge pillars in river currents. Fish often use these vortex zones. They stay in the low-speed zone of the vortex to store energy and wait for prey.
- Flag flutter: Von Karman vortices are formed behind the flagpole when a flag flutters in the wind. These vortices cause periodic pressure variations in the flag fabric, which causes the flag to flutter.
Question 5: Is it used in modern technology?
Answer: Of course, there is. Various technologies have been developed using the principle of Von Karman vortices.
- Vortex Flowmeter: It is used in industries to measure the precise flow rate of liquid or gas flowing through pipelines. An obstacle is placed in the flow path, and the flow rate is determined by measuring the frequency of the vortex created behind it.
- Improved vehicle design: In the automobile and aircraft industries, the design of vehicles or aircraft wings reduces harmful vortices. This reduces drag and saves fuel.
- Renewable energy: Research is underway to apply this principle to special turbine designs for generating energy from water currents. Where vortex-induced vibrations can be converted into electrical energy.
Von Karman Vortices on Nature’s Canvas: A Global View
Von Karman vortices are not just a theoretical subject in the laboratory but a living work of art spread across our planet. People from all corners of the world are witnesses to them in one way or another.
1. Atmospheric Vortices:

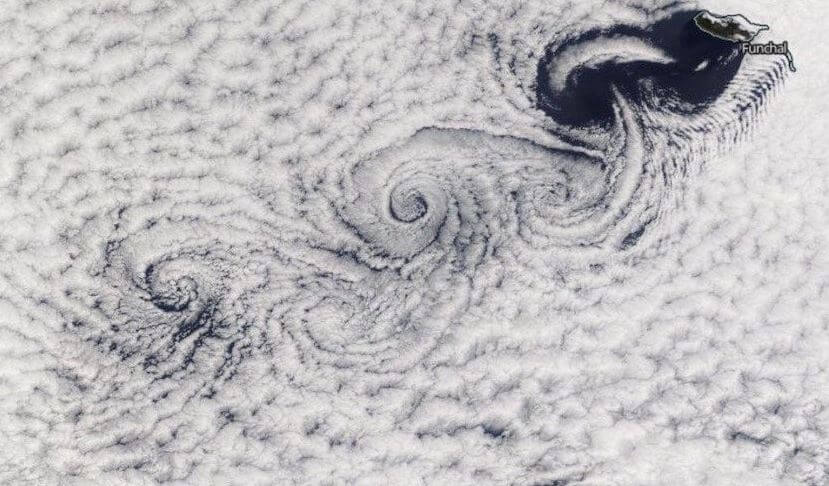

Looking at the Earth from space, we sometimes see strange and beautiful spiral patterns in the cloud cover. These are atmospheric von Karman vortices. These huge vortex street are formed when a layer of stable air flows over a high natural barrier, such as an island or a volcano. These vortices are beautiful and provide meteorologists with important information to understand the speed and stability of the air in the lower layers of the atmosphere.
2. Aqueous Vortices:
Von Karman vortices are also found in the water of rivers, oceans, and lakes. When a large ocean current passes by an underwater mountain or island, large vortices can also be formed there. These vortices spread the nutrients of the ocean and small marine organisms (plankton) from one place to another and play an important role in the aquatic ecosystem.
3. Von Karman vortex in the animal world:
The application of this principle in the animal world is also surprising.
- Fish swimming: When a fish moves its tail, a counter-vortex is created behind it. These vortices push the fish forward. Scientists are studying this swimming technique of fish and trying to develop more efficient autonomous underwater vehicles.
- Flight of birds and insects: Similar vortices are also created when birds or insects flap their wings. This helps them float and move forward in the air. Birds like hummingbirds can stay stationary in the air by rapidly moving their wings, creating complex vortices.
Effects of von Karman vortexes on engineering and technology
The discovery of von Karman vortexes has profoundly impacted the design and functionality of various artificial structures. While engineers have tried to protect themselves from their destructive power, they have also found constructive uses for them.
Destructive effects and resistance:
- Bridges and tall buildings: Since the collapse of the Tacoma Narrows Bridge, civil engineers have given great importance to the effects of vortices caused by wind when designing bridges, tall buildings, or chimneys. Now, wind tunnel tests are used to test models of any large structure. These vibrations are controlled by making small changes to the structure’s shape or using dampers. For example, many chimneys or tall poles are equipped with helical strakes, preventing orderly vortices and reducing vibrations.
- Offshore platforms and pipelines: Offshore oil and gas platforms and pipelines under the sea can be subject to severe vibrations caused by current vortices, which can cause structural weakness. The effects of von Karman vortices are also carefully considered during their design.
Impact of vortices on art, culture, and everyday life
The impact of the von Karman vortices is not limited to science and technology. Its aesthetic appeal has also influenced art and culture.
- Art: The swirling star pattern in Vincent van Gogh’s famous painting “The Starry Night” surprisingly matches the turbulent flow and vortices of fluid dynamics. Although Van Gogh did not paint it scientifically, this inherent pattern of nature is artistically expressed in his brushstrokes.
- Music: The fluttering of a flag or the whistling sound of a telephone wire when the wind blows is also due to von Karman vortices. The vortices are formed at a specific frequency, creating a particular melody or sound tone known as the Aeolian tone. The ancient Greeks used this principle to make a musical instrument called the Aeolian harp, which would sound independently in the wind.
Conclusion: An endless wonder
The vortex street, discovered by Theodore von Karman, is an extraordinary and ubiquitous natural phenomenon. It shows us that even in nature’s most complex chaos, there is a deep mathematical order and beauty hidden. Its presence is everywhere, from the vast canvas of clouds to the wing of a tiny insect.
The von Karman vortex teaches us how to understand, respect, and, if necessary, control nature’s power for humanity’s benefit. It is as much a challenge for engineers as it is an endless field of research for scientists.
So the next time you see a flag fluttering or a vortex forming in a river, don’t just see it as a simple phenomenon. Remember the extraordinary science behind it and nature’s artistic design. The von Karman vortex constantly reminds us that there is an immense wonder and order hidden behind the movement of every particle in this universe.
